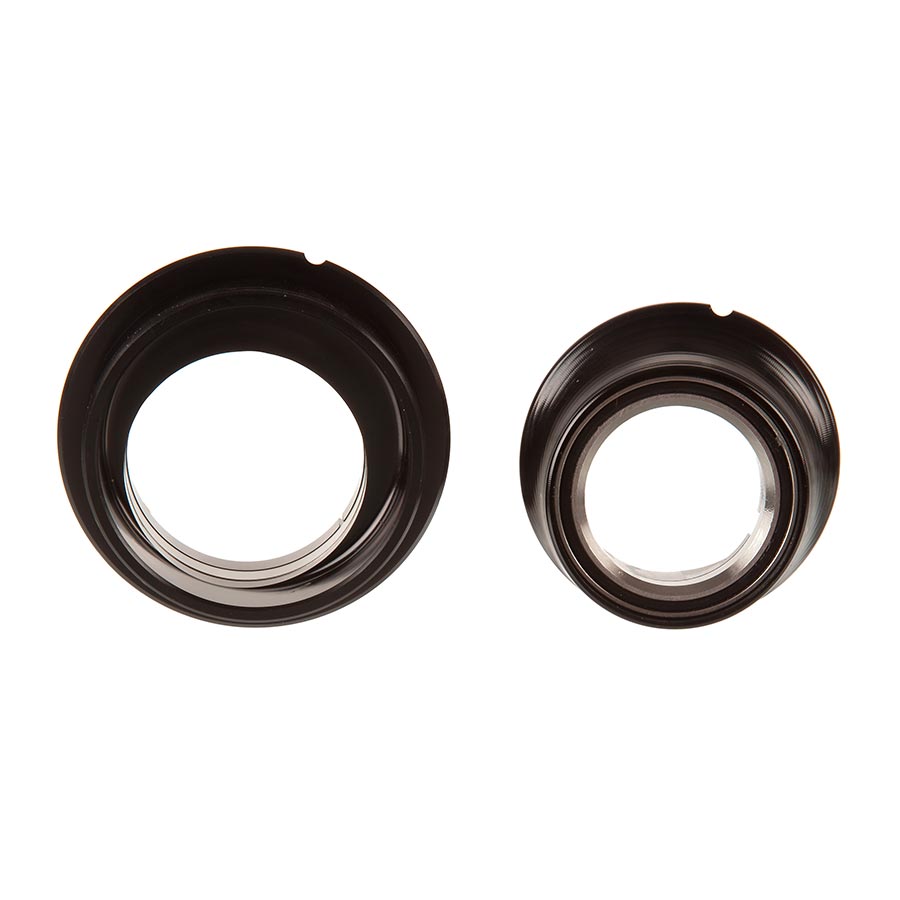

EC44-EC56 Reach Adjust Headset

• Headset will allow you to alter your top-tube length by +/- 5mm.

• Upper cup insertion depth: 9mm

• Lower cup insertion depth: 14mm

• Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 15mm

• Lower cup Stack height: 14mm

• Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing

• Lower Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing

• To suit standard 1 1/8'' forks.

• Proudly machined in the UK, anodised locally in black from 6082 T6 aluminium.

• Split type 7075-T6 aluminium crown race for simple, tool free installation

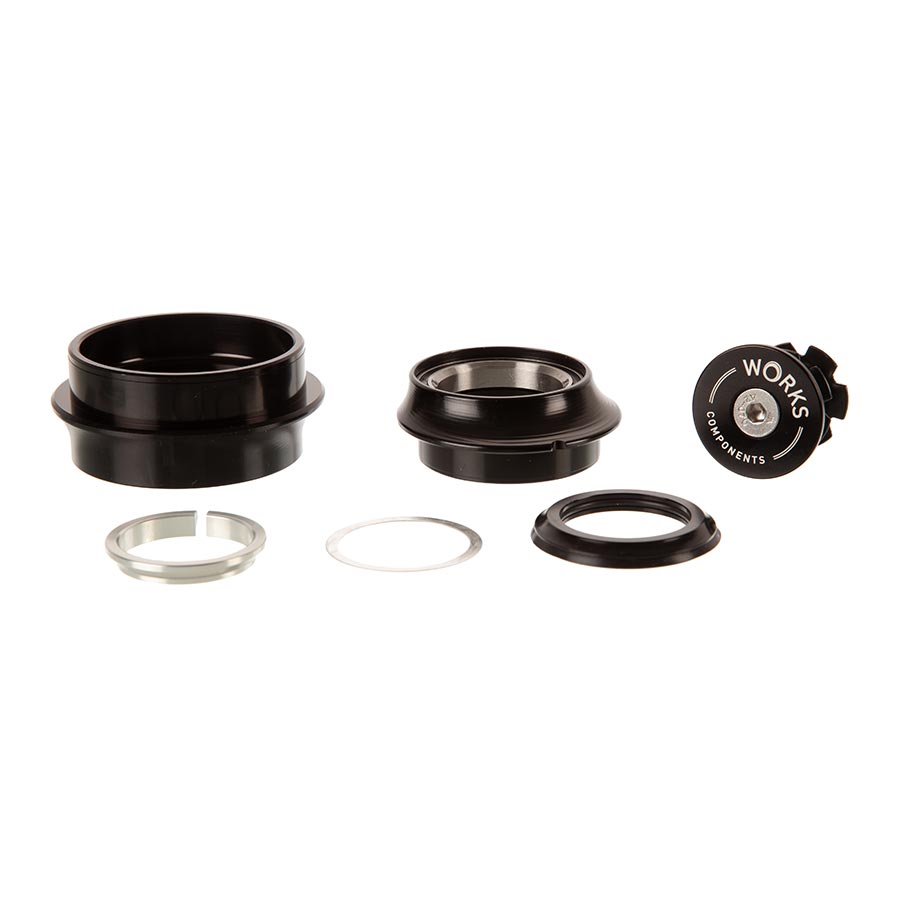

• Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
