EC49-EC49 Reach Adjust Headset

• Headset will allow you to alter your top-tube length by +/- 7mm.

• Upper cup insertion depth: 13.5mm

• Lower cup insertion depth: 13.5mm

• Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 15mm

• Lower cup Stack height: 11mm

• Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing

• Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing

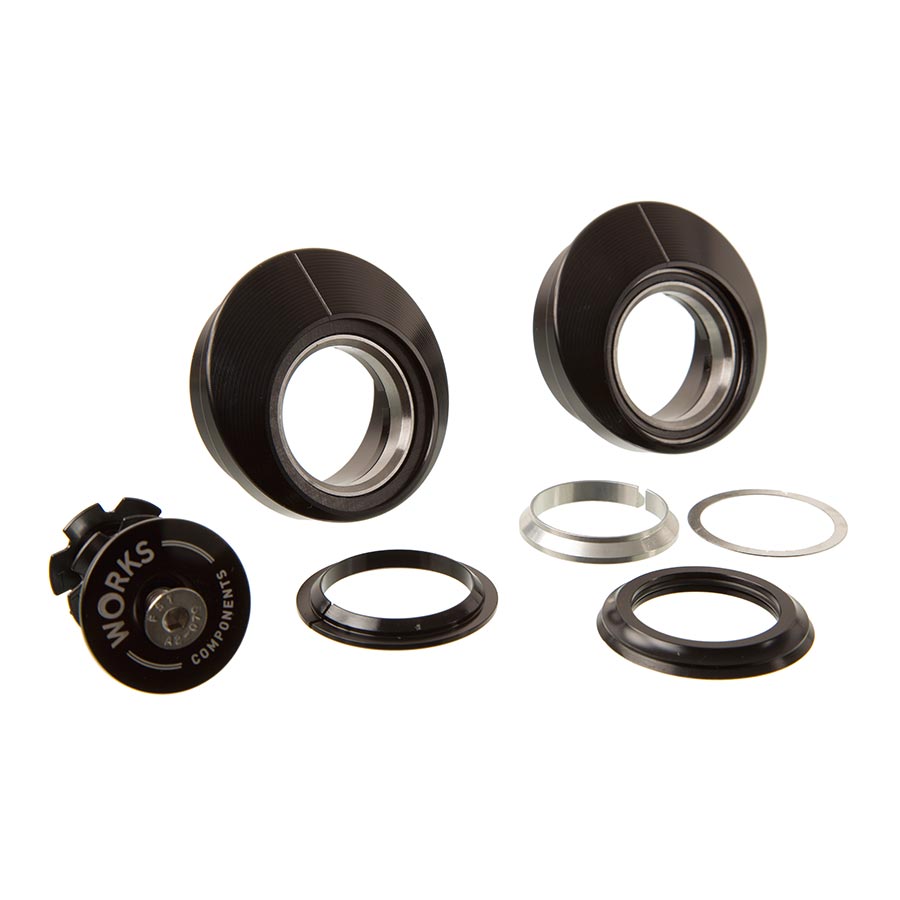

• Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment

• NOTE: This type of headset is only suitable for frames with headtubes in good condition measuring 49.59mm minimum - please check before installation.

• Proudly machined in the UK, anodised locally in black from 6082 T6 aluminium.

• Split type 7075-T6 aluminium crown race for simple, tool free installation
